Accucold by Summit Appliance offers a wide range of undercounter refrigeration for general purpose storage. The CT66JBIADA Series includes refrigerator-freezers designed for optimum storage conditions in built-in applications under lower ADA compliant counters.

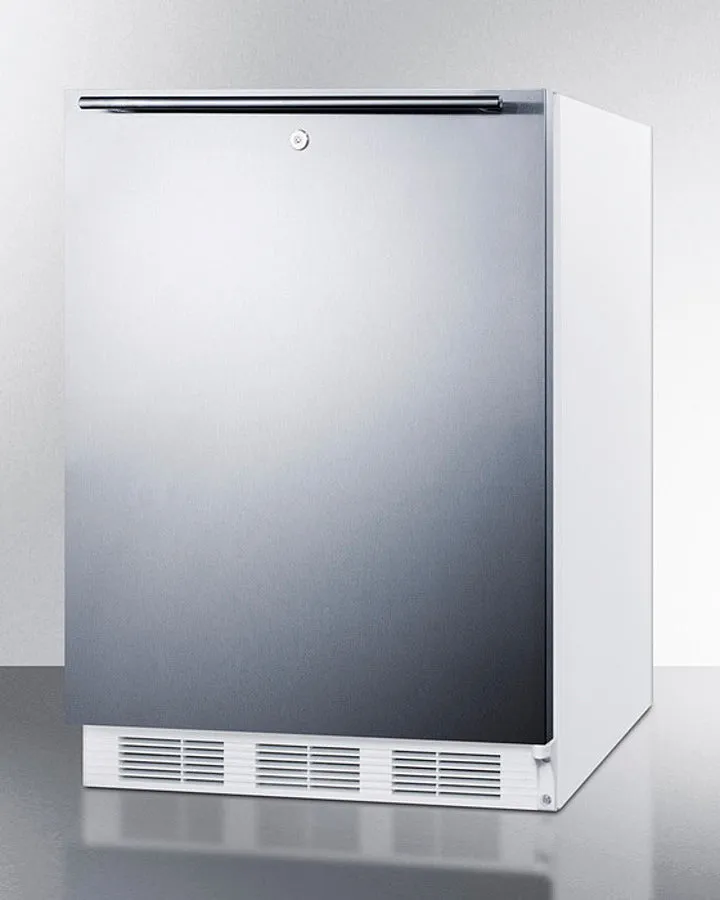

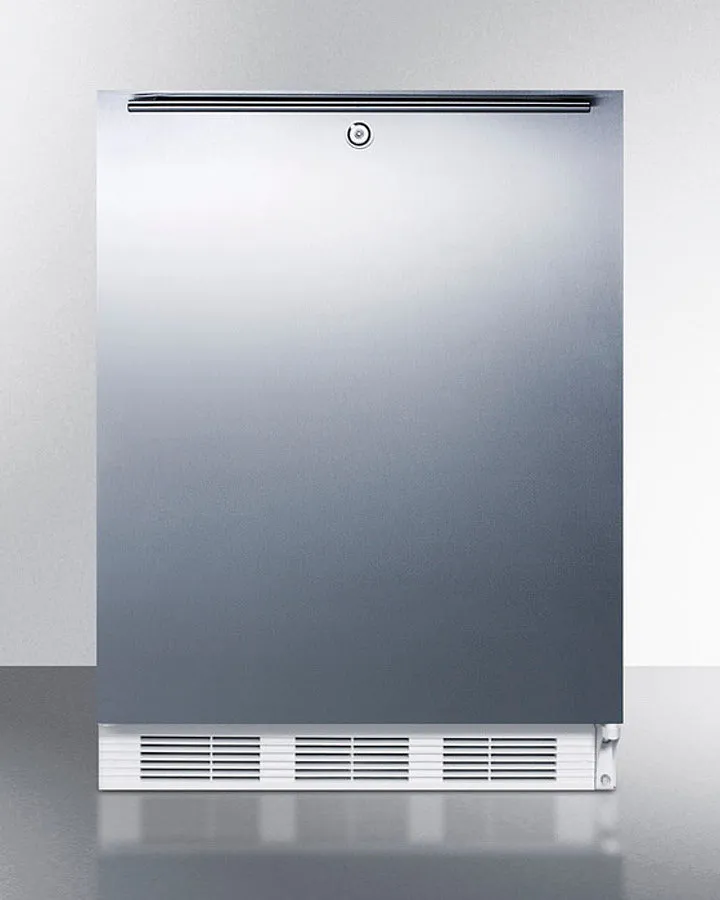

At 32" high, the CT66LWBISSHHADA can be used built-in or freestanding in ADA compliant settings. The 24" footprint fits many popular cutouts while offering over 5 cu.ft. of storage capacity. This model has a white cabinet and reversible stainless steel wrapped door with a factory installed front lock. A thin handle is mounted horizontally to complete the sleek, modern look.

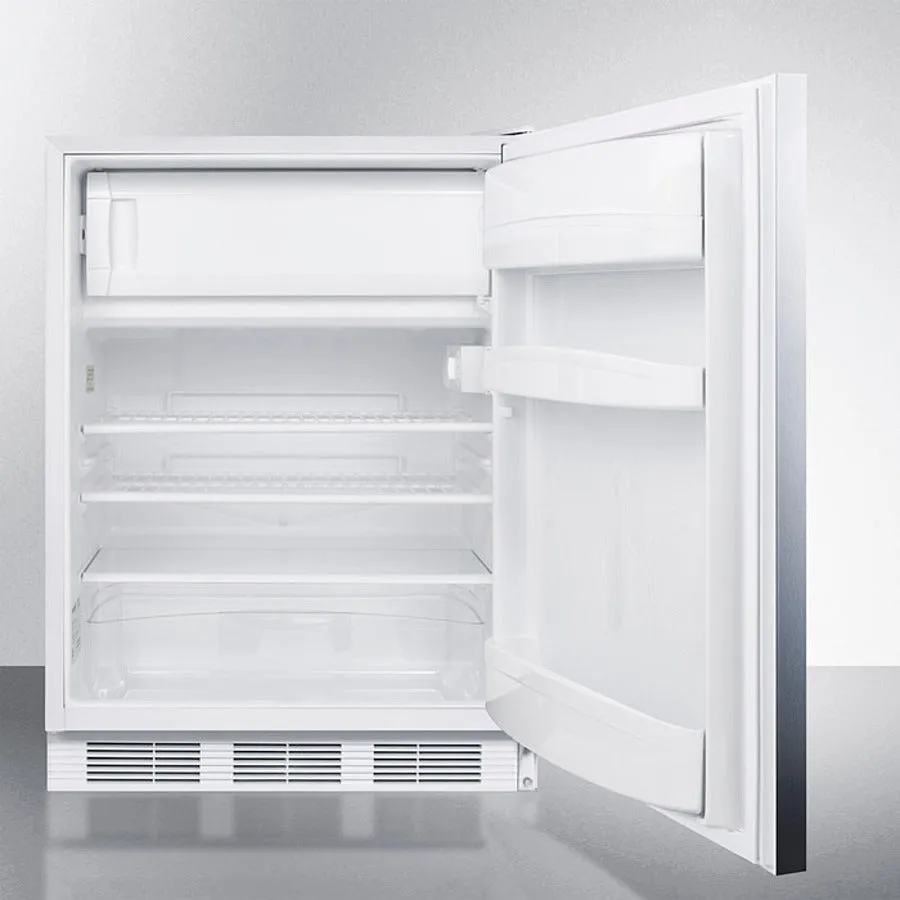

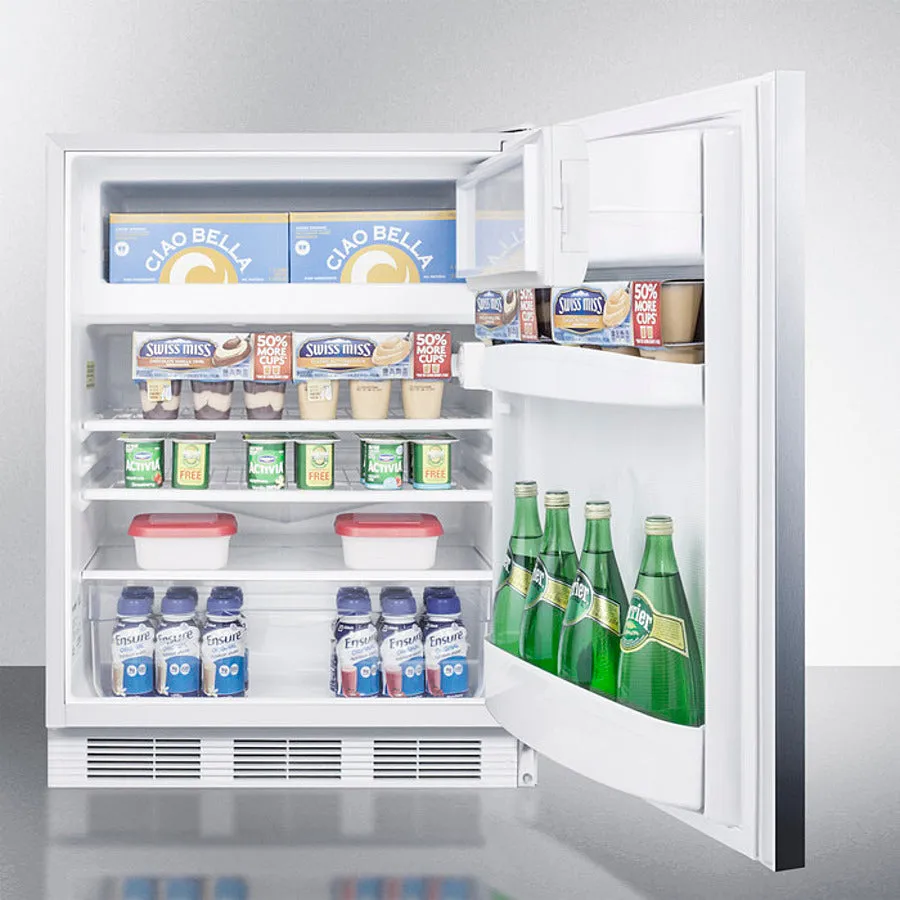

Inside, our unique dual evaporator system separately cools the refrigerator and freezer sections to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting.
The CT66LWBISSHHADA has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full CT66WBIADA Series.
NOTE: This unit is designed for general purpose applications and does not meet DOE energy standards for residential use.
Features
Features
32" high to fit under lower ADA compliant counters
Less than 24" wide with a generous storage capacity
Make the best use of space by installing your appliance under the counter
Allows the unit to be used freestanding
Durable 304 grade wrapping
Thin 14mm diameter on stainless steel handle, mounted horizontally on the door
Keyed lock offers added security
Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Store tall bottles and condiments right on the door for convenient access
Get the longest life and best taste out of produce by storing greens in a bottom crisper
Automatically illuminates when you open the door
Dial thermostat located inside for easy temperature management
User-reversible door swing for added flexibility
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Specifications
| Capacity | 5.1 cu.ft. (144 L) |
| Defrost Type | Cycle |
| Door | Stainless Steel |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Shipping Weight | 150.0 lbs. (68 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101068879 |
| Refrigerator-Freezer | |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Adjustable Shelves | Yes |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Interior Light | Yes |
| Refrigerator - Shelf Type | Wire |
| Refrigerator - Shelf Qty | 2 |
| Refrigerator - Full Door Shelves | 3 |
| Thermostat Type | Dial |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.92 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
Dimensions & Weight
Dimensions & Weight
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.38" (82 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.5" (60 cm) |
| Weight | 100.0 lbs. (45 kg) |
| Shipping Weight | 150.0 lbs. (68 kg) |
Downloads & Manual
Downloads & Manual
| Brochure | |
|---|---|
| Use & Care |
